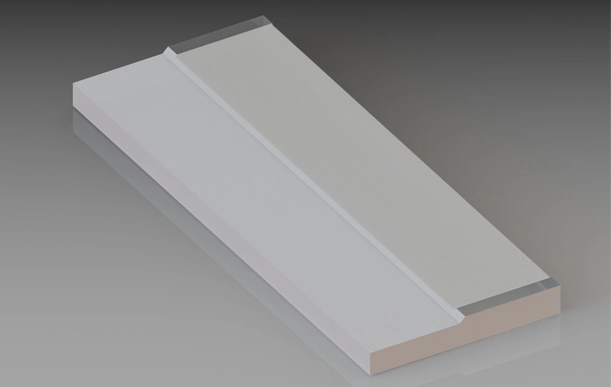

192 Channels V-Grooves

Name: 192 Channels V-Grooves
Brand: Shenzhen Solar Valley Scitech Development Co., Ltd.

192 Channels V-Grooves stand at the forefront of optical fiber alignment technology, crafted from the highest purity quartz or borosilicate glass. These components are the result of ultra-high-precision manufacturing processes, designed to achieve unparalleled accuracy in fiber positioning. Their construction is meticulously tailored to match the thermal expansion coefficient of optical fibers, ensuring a stress-free state for Fiber Array Units (FAU) after packaging, thereby enhancing reliability and preventing fiber displacement under extreme temperatures. They are essential for the functionality and performance of advanced optical devices such as FAU, AWG, VOA, PLC, FTTH, and DWDM, marking a significant advancement in optical communication technology.

Inquiry Now

Specification of 192 Channels V-Grooves

192_channel_v-groove product parameter table
Project	Indicator requirements
Material properties	Material: high purity quartz, PYREX glass, Tempax glass, Borofloat33 glass
Dimensional properties	Number of channels: 192 channels
	Fiber diameter in V groove: Φ50μm, Φ80μm, Φ125μm, Φ250μm
	V-groove spacing P: 0.127, 0.250, 0.500, 0.750±0.0005mm, or according to customer requirements
	V groove depth F: 0.03±0.01mm
	V groove angle A: 60°±2°
	V-groove length L: 10 or 12±0.1mm, or as per customer requirements
	V-groove width W: W±0.05mm, or according to customer requirements
	V groove thickness H: 1.5, 2±0.05mm or according to customer requirements
	Other sizes: See the standard V-groove diagram for details, or according to customer requirements
Matching cover	See the standard V-groove diagram for details, or according to customer requirements
Surface requirements	The product has no cracks, the V groove surface Ra0.2μm, the steps and sides Ra0.8μm, and other surfaces are transparent.
	The matching cover sheet can be Solar Valley standard cover sheet or produced according to customer requirements.

Dimension Drawing of 192 Channels V-Grooves

Features of 192 Channels V-Grooves

Material: High-purity quartz, PYREX glass, Tempax glass, Borofloat33 glass can be used, with high strength, high wear resistance and high light transmittance.
Quality property: High-precision fiber core positioning size; low insertion loss and high reliability;
Ultra-high-precision CNC micro-grinding is used to process the V-groove. The fiber core tolerance is ≤±0.5μm, with high precision and consistency and stable quality.
Fiber Diameter: 192 channel v-groove The number of channels is 192. The diameter of the optical fiber placed in the V groove can be 50μm, 80μm, 125μm, 250μm or the fiber diameter specified by the customer.
Application:
AWG (Arrayed Waveguide Grating)
VOA (Variable Optical Attenuator)
PLC (Planar Lightwave Chip)
FTTH (Fiber to the Home)
Collimated fiber arrays and micro-optics
VCSEL and array laser chips
DWDM (Dense Wavelength Division Multiplexer)
Active/passive array fiber optic devices
