32 Channels V-Grooves

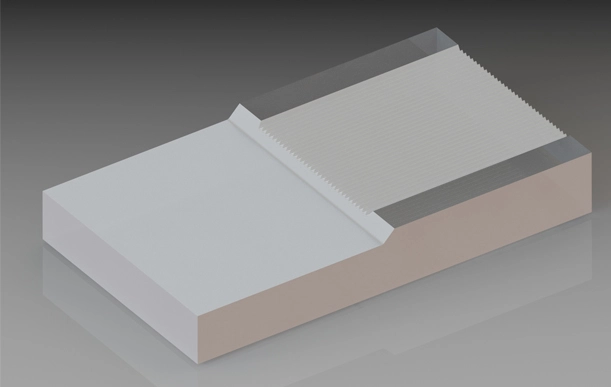

Name: 32 Channels V-Grooves
Brand: Shenzhen Solar Valley Scitech Development Co., Ltd.

32 Channels V-Grooves are precision-engineered from high-purity quartz or borosilicate glass, utilizing cutting-edge technology for the creation of exact V-grooves that ensure precise optical fiber positioning. Their design aligns with the optical fiber’s thermal expansion coefficient, guaranteeing a stress-free environment post-packaging, enhancing reliability, and eliminating fiber displacement at varying temperatures. These components are pivotal in the functionality and performance of optical devices such as FAU, AWG, VOA, PLC, FTTH, and DWDM, offering unparalleled precision and stability.

Inquiry Now

Specification of 32 Channels V-Grooves

32_channel_v-groove product parameter table
Project	Indicator requirements
Material properties	Material: high purity quartz, PYREX glass, Tempax glass, Borofloat33 glass
Dimensional properties	Number of channels: 32 channels
	Fiber diameter in V groove: Φ50μm, Φ80μm, Φ125μm, Φ250μm
	V-groove spacing P: 0.127, 0.250, 0.500, 0.750±0.0005mm, or according to customer requirements
	V groove depth F: 0.03±0.01mm
	V groove angle A: 60°±2°
	V-groove length L: 10 or 12±0.1mm, or as per customer requirements
	V-groove width W: W±0.05mm, or according to customer requirements
	V groove thickness H: 0.3, 0.4, 0.5, 0.7, 1, 1.5, 2±0.05mm or according to customer requirements
	Other sizes: See the standard V-groove diagram for details, or according to customer requirements
Matching cover	See the standard V-groove diagram for details, or according to customer requirements
Surface requirements	The product has no cracks, the V groove surface Ra0.2μm, the steps and sides Ra0.8μm, and other surfaces are transparent.

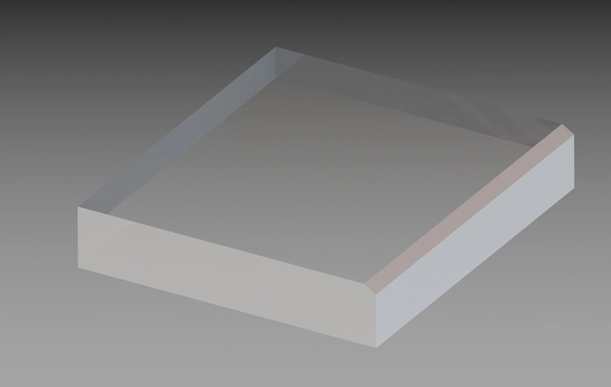

	The matching cover sheet can be Solar Valley standard cover sheet or produced according to customer requirements.

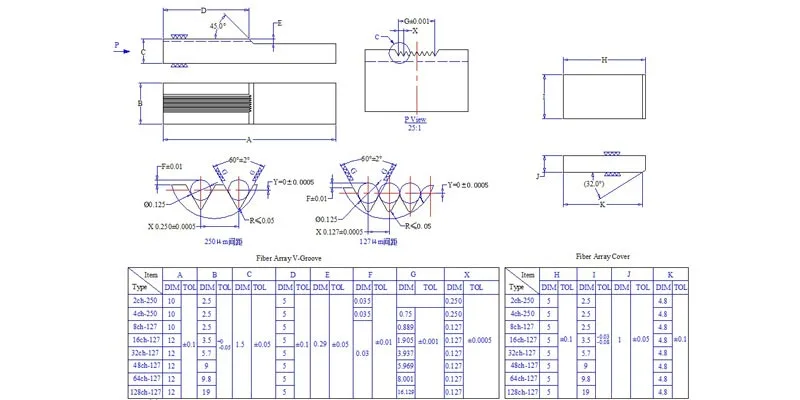

Dimension Drawing of 32 Channels V-Grooves

Features of 32 Channels V-Grooves

Material: High-purity quartz, PYREX glass, Tempax glass, Borofloat33 glass can be used, with high strength, high wear resistance and high light transmittance.
Quality Property: High-precision fiber core positioning size; low insertion loss and high reliability; Ultra-high-precision CNC micro-grinding is used to process the V-groove. The fiber core tolerance is ≤±0.5μm, with high precision and consistency and stable quality.
Fiber Diameter: 32 channel v-groove The number of channels is 32. The diameter of the optical fiber placed in the V groove can be 50μm, 80μm, 125μm, 250μm or the fiber diameter specified by the customer.
Application:
AWG (Arrayed Waveguide Grating)
VOA (Variable Optical Attenuator)
PLC (Planar Lightwave Chip)
FTTH (Fiber to the Home)
Collimated fiber arrays and micro-optics
VCSEL and array laser chips
DWDM (Dense Wavelength Division Multiplexer)
Active/passive array fiber optic devices
