Asphere Lenses

Molded glass aspherical lenses use ultra-high-precision molds to perform high-temperature molding on glass glass materials under the protection of inert gas at set high temperatures and pressures to produce glass aspherical lenses with high-precision contour accuracy and surface quality. . The advantages of the lens are low production cost, high precision, and suitable for mass production.

asphere lenses
aspherical lenses

Specifications of Asphere Lenses


Molded aspheric lens product parameter table
ProjectIndicator requirements
1.MaterialUsing high performance low temperature molded optical glass
2. DiameterOD≤3mm, OD≤30mm, OD≤100mm
3. Center thicknessT≤2mm, T≤10mm, T≤50mm
4. Effective focal lengthAccording to drawing requirements
5. Working distanceAccording to drawing requirements
6. Design wavelength430~633nm, 630~780nm, 1550~1620nm
7. Numerical apertureAccording to drawing requirements
8.CoatingAR antireflection coating R<0.2% @λnm
9. EccentricityAccording to drawing requirements
10. Effective apertureED>80% aspheric area
11. Surface shapeUltra-high precision Rt≤0.1μm, high precision Rt≤0.5μm, precision Rt≤1μm
12.Surface quality60-40, 40-20, 20-10 according to drawing requirements


Dimension Drawing of Asphere Lenses

Dimension Drawing of Asphere Lenses

Features of Asphere Lenses

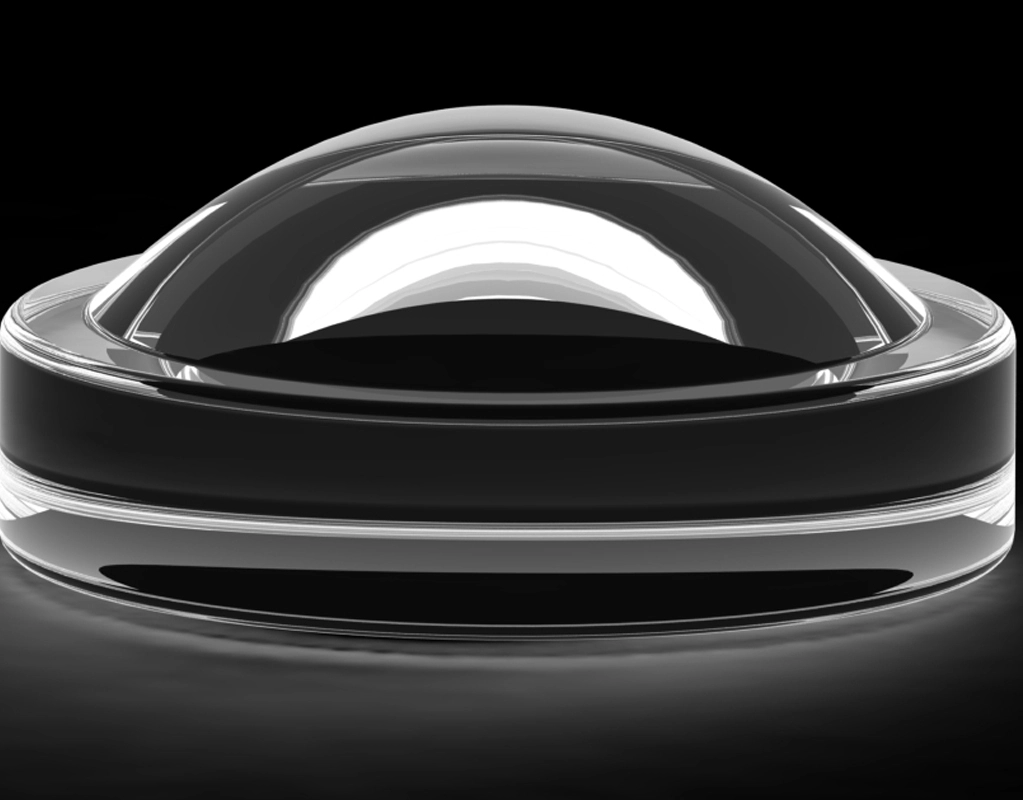

Features of Asphere Lenses
  • One-stop design and customized production: Solar Valley designs and high-temperature molds processes various plano-convex, biconvex, and convex-concave structure aspheric lenses according to customer requirements, for more custom aspherical lenses, contact Solar Valley.

  • Material: Solar Valley's molded lens materials are selected according to customer requirements, including low-temperature molded materials glass glass produced in Japan, China, and the United States.

  • Mold: Solar Valley produces ultra-high-precision aspherical compression molding molds with various structures according to customer requirements. The materials include tungsten carbide, ceramics, etc.

  • Lens properties: uniform light spot, clear projection, complete specifications, aerospace quality

    Product indicator description:

    a. Maximum dimensions of circular aspheric molded lenses:

    Small diameter molded lens diameter ≤φ3mm Medium diameter molded lens diameter: ≤φ30mm Large diameter molded lens diameter: ≤φ100mm

    b. Maximum dimensions of square aspheric molded lenses: Dimensions of small molded lenses: ≤30×30mm Dimensions of large molded lenses: ≤70×70mm

    c. Aspherical molded lenses can reach the following accuracy levels according to customer requirements:

    Ultra-high precision grade: surface error <0.1μm, surface roughness <0.01μm

    High precision grade: Surface error <0.5μm, surface roughness <0.05μm Precision grade: Surface error <1μm, surface roughness <0.1μm

    d. Surface defect grade: 10-5, 20-10, 40-20, 60-40, produced according to customer requirements.

    e. Coating: Coating according to customer requirements.
