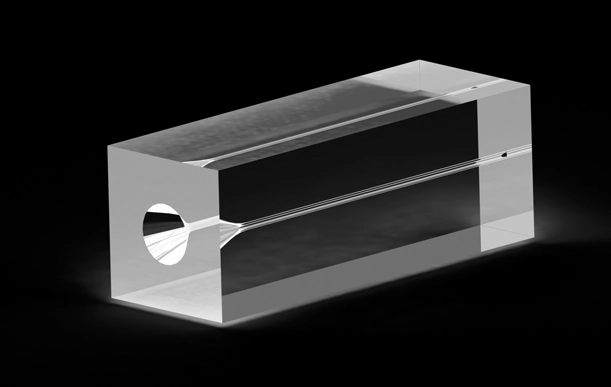

The capillary is a basic device for optical communication.The inner diameter accuracy of the capillary hole is within ±0.001mm. It has high dimensional positioning accuracy, excellent physical and chemical properties, and high ultraviolet rays transmission characteristics.Capillary and optical fiber can be quickly cured and bonded by ultraviolet adhesive, and the optical fiber can be fixed and positioned. Solar Valley can customize various shapes and structures of capillaries according to customer requirements, such as square positive center capillaries, square eccentric capillaries, D-type capillaries, slotted capillaries, step structure capillaries and so on.
| Customized Shaped Capillaries Specification Sheet | |||
| Item | Specification | ||
| Material Properties | Material: Borosilicate glass/ High Purity Fused Silica/Ceramics | ||
| Dimensions and Tolerances | Square Capillaries Overall Dimension WxW: 0.50×0.50, 1.00×1.00, 1.50×1.50, 2.00×2.00, 2.50×2.50mm, or according to customer requirements. Overall Dimension Tolerance: W±0.005mm, or according to customer requirements. Center hole position dimension and tolerance: H±0.025mm, or according to customer requirements. ID B tolerance: B±0.001mm, or according to customer requirements. | ||
| D-shaped Capillaries OD: Φ0.75mm, Φ1.00mm, Φ1.80mm, Φ2.00mm, Φ2.50mm OD Tolerance: OD±0.005mm, or according to customer requirements. ID B tolerance: B±0.001mm, or according to customer requirements. Platform Height tolerance: H±0.05mm, or according to customer requirements. | |||
| Step/Slotted Capillaries OD：Φ0.75mm, Φ1.00mm, Φ1.80mm, Φ2.00mm, Φ2.50mm OD Tolerance: OD±0.005mm, or according to customer requirements. ID B tolerance: B±0.001mm, or according to customer requirements. Platform Height tolerance: H±0.05mm, or according to customer requirements. Slot tolerance: W±0.05mm, or according to customer requirements. | |||
| Length: 5mm, 7mm, 15mm, 20mm Tolerance: L±0.2mm, or according to customer requirements. | |||
| Cone Diameter: Φ0.5±0.15mm, Φ1±0.25mm, or according to customer requirements. | |||
| Cone Depth: 0.5～1.5mm, 1～2.5mm, or according to customer requirements. | |||
| Surface Quality | The cylindrical surface of the product is transparent. The product has no cracks, appearance and surface condition can be made according to customer requirements. | ||
| Can be customized according to customer requirements. | |||
Material: Borosilicate Glass, silica (SiO2) content 80%, softening point >800°C, high strength, high hardness, high light transmittance.
Properties: The glass capillary is melted and drawn at high temperature. The surface is transparent, which eliminates hidden micro-cracks on the surface. It is not easy to crack and break when dispensing glue to fix the optical fiber, and the dispensing qualification rate is high.
The glass capillary is transparent and has high UV transmission characteristics. The capillary tube and 2/3/4 optical fibers can be quickly cured and bonded with UV adhesive to fix and position the optical fibers.
Environmental performance: The production process does not use any chemical solvents, and the materials and production process do not contain or involve substances controlled by the European Union.
High dimensional accuracy: The double microhole glass capillary is accurately made through a CNC drawing tower. The optical fiber has high dimensional tolerance and positioning accuracy. The double capillary holes can install two optical fibers for precise positioning, and can precisely control the center distance between the two optical fibers.
